Horizontal,Flat Panel Bathroom Radiators from AIDAL designer

• With a strict manufacturing process, our radiators offer you a heating solution at an competitive price.
• They easily fit into your central heating system like a normal household radiator, meaning no complicated installation.
• The water inlet/outlet size of radiators is 1/2".
• All of our radiators come with lifetime warranty.
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

Features And Details

• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Made from 1.6mm Premium Mild Steel
• Unique hot water circulation structure
• Modern style flat panel high quality radiator
• Wall mount or stand-up installation
• Brackets and fixings included
• Valves are not included.But can be bought separately.Click here to buy our high quality valves.

Single Layer Flat Horizontal Radiator:

Model	Size(H x W)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU

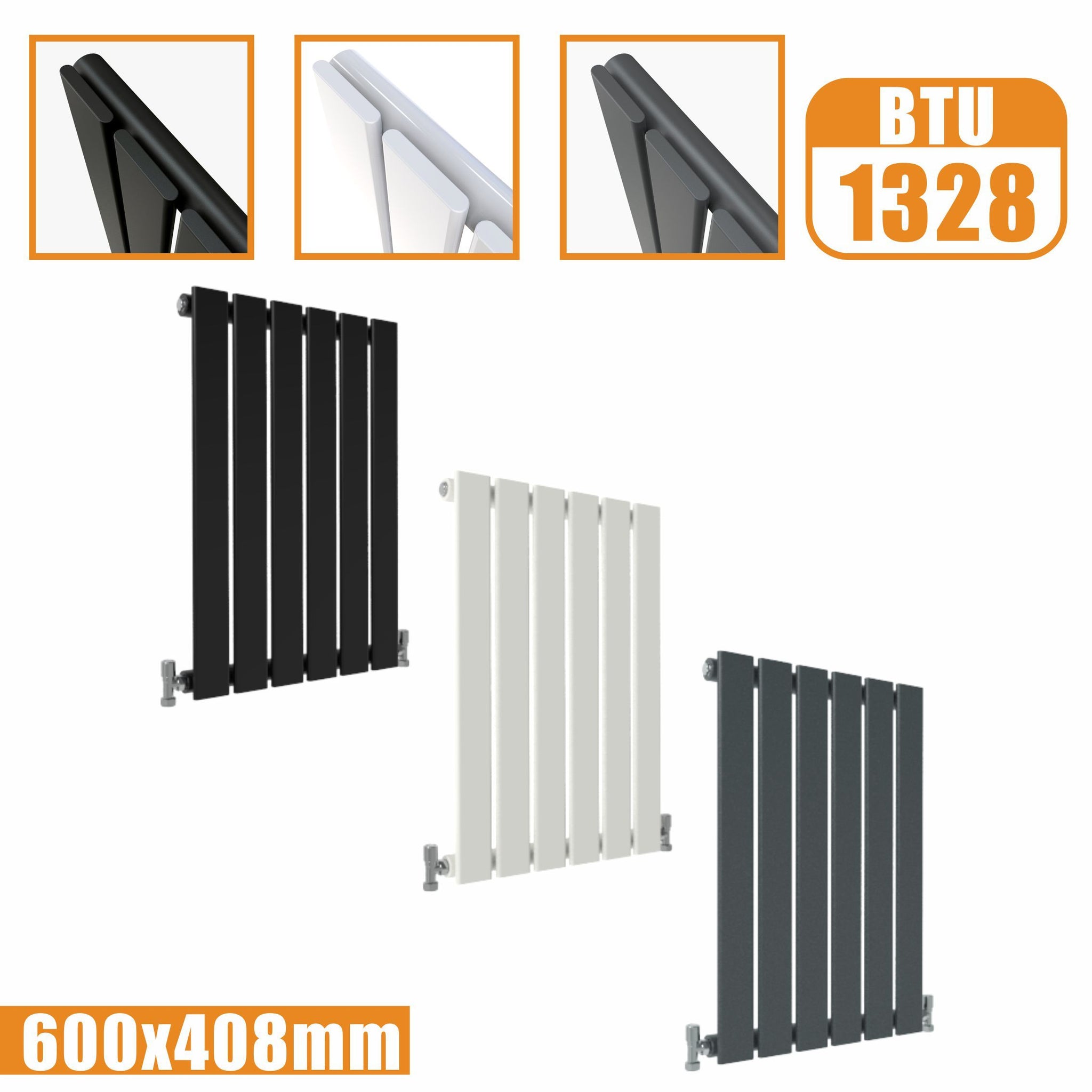

Flat Panel	600 x 408mm	Single	6	8.3	389	1328	Click to view
Flat Panel	600 x 612mm	Single	9	11.5	581	1982	Click to view
Flat Panel	600 x 748mm	Single	11	13.8	708	2418	Click to view
Flat Panel	600 x 884mm	Single	13	16.2	836	2854	Click to view
Flat Panel	600 x 1020mm	Single	15	18.2	964	3290	Click to View
Flat Panel	600 x 1156 mm	Single	17	20.6	1092	3726	Click to View
Flat Panel	600 x 1428 mm	Single	21	25	1347	4598	Click to View

Double Layer Flat Horizontal Radiator:

Model	Size(H x W)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU
Flat Panel	600 x 1428 mm	Double	21+21	44.9	2073	7076	Click to view

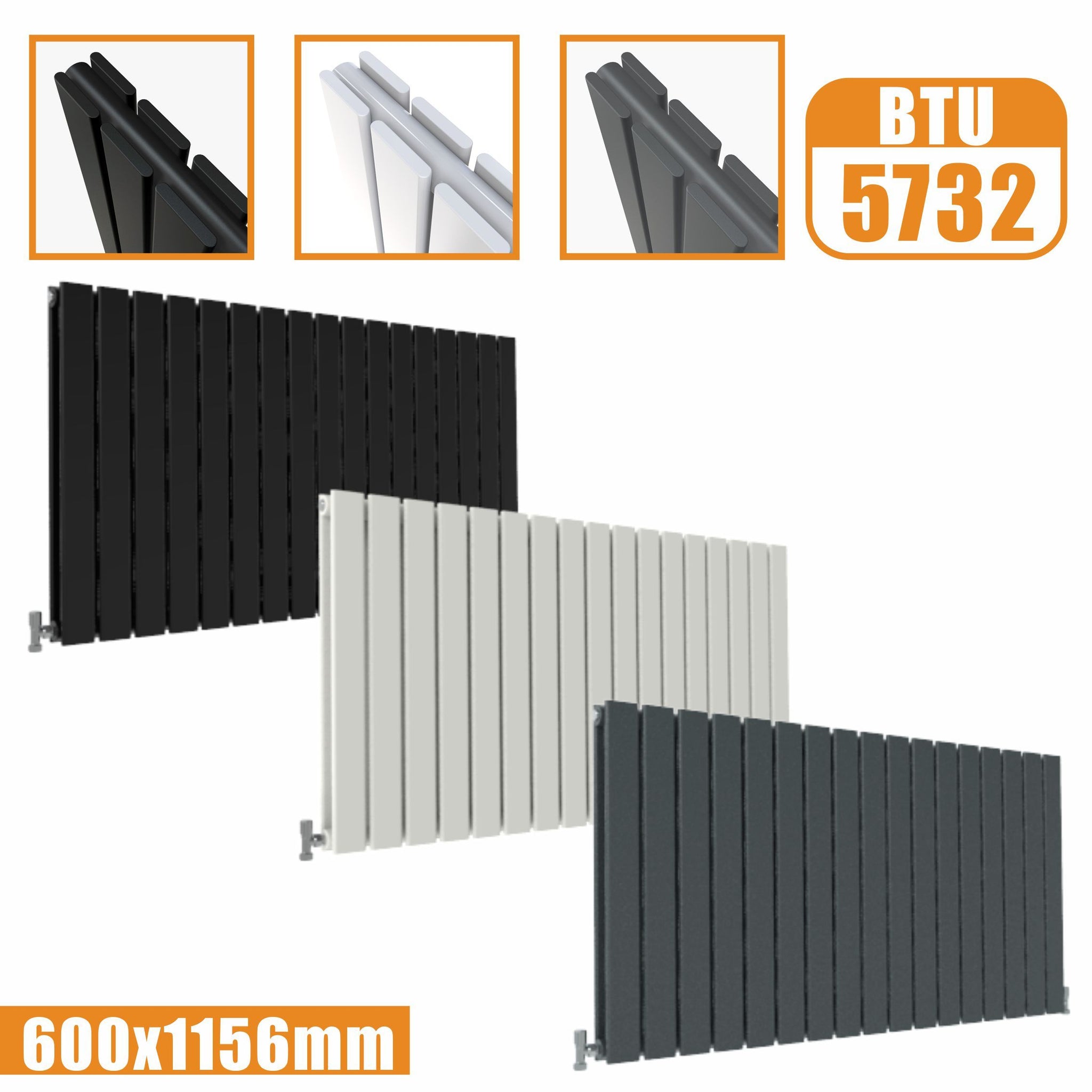

Flat Panel	600 x 1156 mm	Double	17+17	36.4	1679	5732	Click to view
Flat Panel	600 x 1020 mm	Double	15+15	32.5	1483	5060	Click to view
Flat Panel	600 x 884 mm	Double	13+13	28.6	1286	4388	Click to view
Flat Panel	600 x 748 mm	Double	11+11	24.5	1089	3716	Click to View
Flat Panel	600 x 612 mm	Double	9+9	20	892	3044	Click to View
Flat Panel	600 x 408 mm	Double	6+6	13.8	597	2036	Click to View

Notice: There are two ways for delivery according to different postcodes : Next working day and three working days. Pls subject to map and below content for delivery, thanks!

Note:The area we offer next working day delivery(all orders that payments made by paypal before 00:30AM,will be delivered the next working day,Exclude weekends and public holidays)

*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
